API 5L Gr.B/X42/X52/X56/X60/X65 PSL1/PSL2
ASTM A106/ASME SA106 GR. B/C
ASTM A53/ASME SA53 Gr.B
ASTM A333/ASME SA333 Gr.6

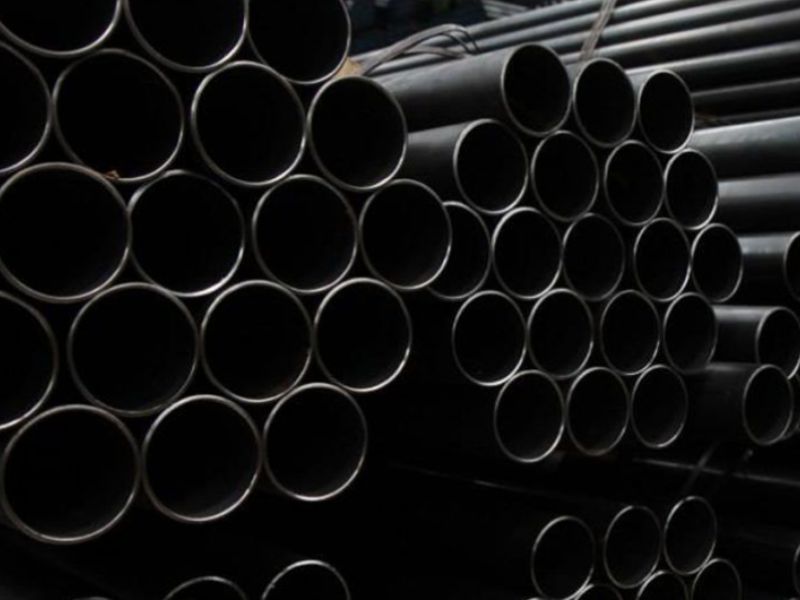

- Line Pipe
- Precision Cold Drawn Mechanical Pipe
- High Pressure Mechanical Pipe
- High Temperature Pipe
- Low Temperature Pipe
Line Pipe Size
| Nominal Pipe Size | Outside Diameter | Nominal Wall Thickness | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | ASME | DIN | DIN(2) | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS |
| 6 | 1/8" | 10.3 | - | - | - | - | - | 1.73 | 1.73 | - | 2.41 | 2.41 | - | - | - | - | - |
| 8 | 1/4" | 13.7 | - | - | - | - | - | 2.24 | 2.24 | - | 3.02 | 3.02 | - | - | - | - | - |
| 10 | 3/8" | 21.3 | - | - | - | - | - | 2.31 | 2.31 | - | 3.20 | 3.20 | - | - | - | - | - |
| 15 | 1/2" | 21.3 | 21.3 | 2.0 | 2.11 | - | 2.41 | 2.77 | 2.77 | - | 3.73 | 3.73 | - | - | - | 4.78 | 7.47 |
| 20 | 3/4" | 26.7 | 26.9 | 2.3 | 2.11 | - | 2.41 | 2.87 | 2.87 | - | 3.91 | 3.91 | - | - | - | 5.56 | 7.82 |
| 25 | 1" | 33.4 | 33.7 | 2.6 | 2.77 | - | 2.90 | 3.38 | 3.38 | - | 4.55 | 4.55 | - | - | - | 6.35 | 9.09 |
| 32 | 1-1/4" | 42.2 | 42.2 | 2.6 | 2.77 | - | 2.97 | 3.56 | 3.56 | - | 4.85 | 4.85 | - | - | - | 6.35 | 9.70 |
| 40 | 1-1/2" | 48.3 | 48.3 | 2.6 | 2.77 | - | 3.18 | 3.68 | 3.68 | - | 5.08 | 5.08 | - | - | - | 7.14 | 10.15 |
| 50 | 2" | 60.3 | 60.3 | 2.9 | 2.77 | - | 3.18 | 3.91 | 3.91 | - | 5.54 | 5.54 | - | - | - | 8.74 | 11.07 |
| 65 | 2-1/2" | 73.0 | 76.1 | 2.9 | 3.05 | - | 4.78 | 5.16 | 5.16 | - | 7.01 | 7.01 | - | - | - | 9.53 | 14.02 |
| 80 | 3" | 88.9 | 88.9 | 3.2 | 3.05 | - | 4.78 | 5.49 | 5.49 | - | 7.62 | 7.62 | - | - | - | 11.13 | 15.24 |
| 90 | 3-1/2" | 101.6 | - | - | 3.05 | - | 4.78 | 5.74 | 5.74 | - | 8.08 | 8.08 | - | - | - | - | - |
| 100 | 4" | 114.3 | 114.3 | 3.6 | 3.05 | - | 4.78 | 6.02 | 6.02 | - | 8.56 | 8.56 | - | 11.13 | - | 13.49 | 17.12 |
| 125 | 5" | 141.3 | 139.7 | 4.0 | 3.40 | - | - | 6.55 | 6.55 | - | 9.53 | 9.53 | - | 12.70 | - | 15.88 | 19.05 |
| 150 | 6" | 168.3 | 168.3 | 4.5 | 3.40 | 4.5 | - | 7.11 | 7.11 | - | 10.97 | 10.97 | - | 14.27 | - | 18.26 | 21.95 |
| 200 | 8" | 219.1 | 219.1 | 6.3 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10" | 273.0 | 273.0 | 6.3 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 28.58 | 25.40 |
| 300 | 12" | 323.8 | 323.9 | 7.1 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.70 | 17.48 | 11.44 | 25.40 | 28.58 | 33.32 | 25.40 |
| 350 | 14" | 355.6 | 355.6 | 8.0 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | - |
| 400 | 16" | 406.4 | 406.4 | 8.8 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | - |
| 450 | 18" | 457.2 | 457.0 | 10.0 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | - |
| 500 | 20" | 508.0 | 508.0 | 11.0 | 6.35 | 9.53 | 12.70 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50.01 | - |
| 550 | 22" | 558.8 | - | - | 6.35 | 9.53 | 12.70 | 9.35 | - | 22.23 | 12.70 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | - |
| 600 | 24" | 609.6 | 610.0 | 12.5 | 6.35 | 9.53 | 14.27 | 9.35 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | - |
Hot Rolled Seamless Steel Pipe Technological Process
01. Billet Inspection
02. Cutting of Qualified Billet & Heating
03. Hot piercing & Rolling
04. Cooling Bed
05. Straigthening & Cutting
